Nanlite Pavoslim 240B LED BI-COLOR PANEL

1.190,00 IVA esclusa
1.451,80 IVA inclusa

Categorie: ,
Foldable Metal Body,
Convenient Setup and High Luminance

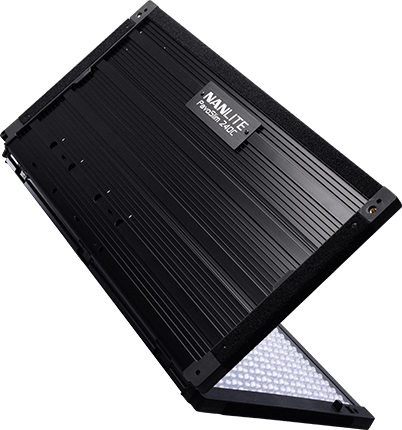

Through clever design, the metal body of the PavoSlim 240B/240C
can be quickly folded and unfolded in seconds. Mounting sockets
along the fold on the rear of the fixture are combined with a
universal or baby pin holder to ensure that it is securely locked
into place when unfolded. This forms a sturdy and durable structure.
Users can quickly and assuredly use the PavoSlim 240B and 240C
for interviews, in medium-sized studios, and for demanding film
and television productions.
260W
Rated Power
3.44kg/3.65kg
Weight
2.86cm
Thickness (unfolded)
Efficient Design, Maximum Output
The Nanlite team has developed a dedicated optical system for the individual emitters of the PavoSlim lights.
Combining efficient heat dissipation and excellent optical design, the PavoSlim 240B/240C achieve 4 times
output compared to the average output of conventional mat light products.
PavoSlim 240B
22990 lux@1m
Light only / 5600K
PavoSlim 240C
24970 lux@1m
Light only / 5600K
Rapid Deployment
Every element of the PavoSlim is designed for rapid deployment. Because every minute counts on set,
the PavoSlim 240B/240C can be quickly unfolded, secured and locked into place in moments.
The accessories are also designed with the same philosophy for easy and rapid set-up.

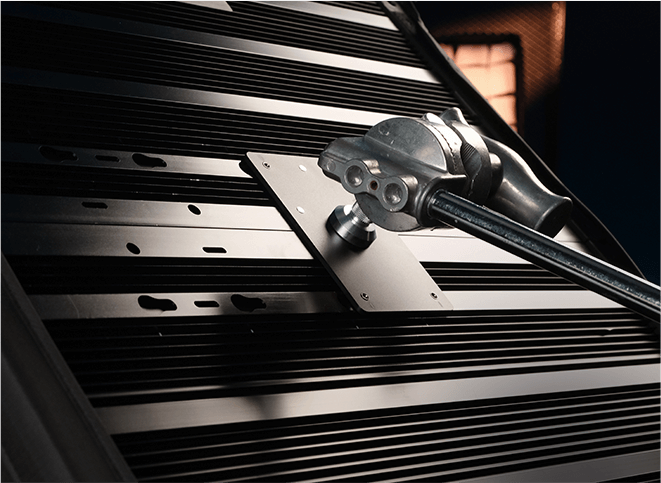

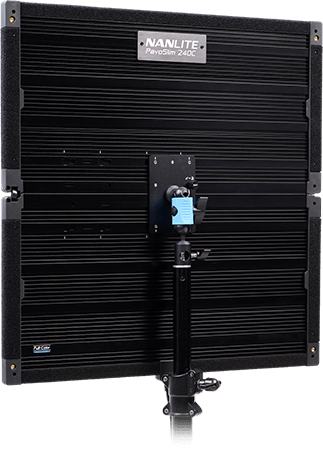

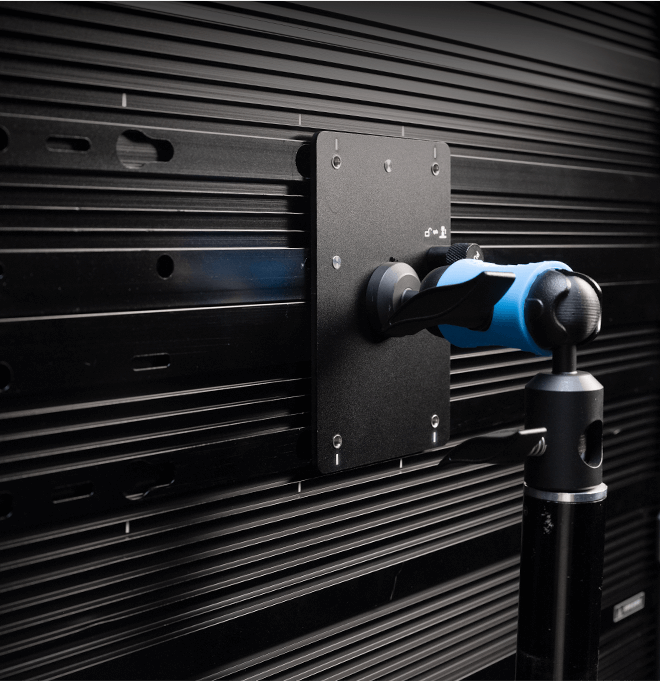

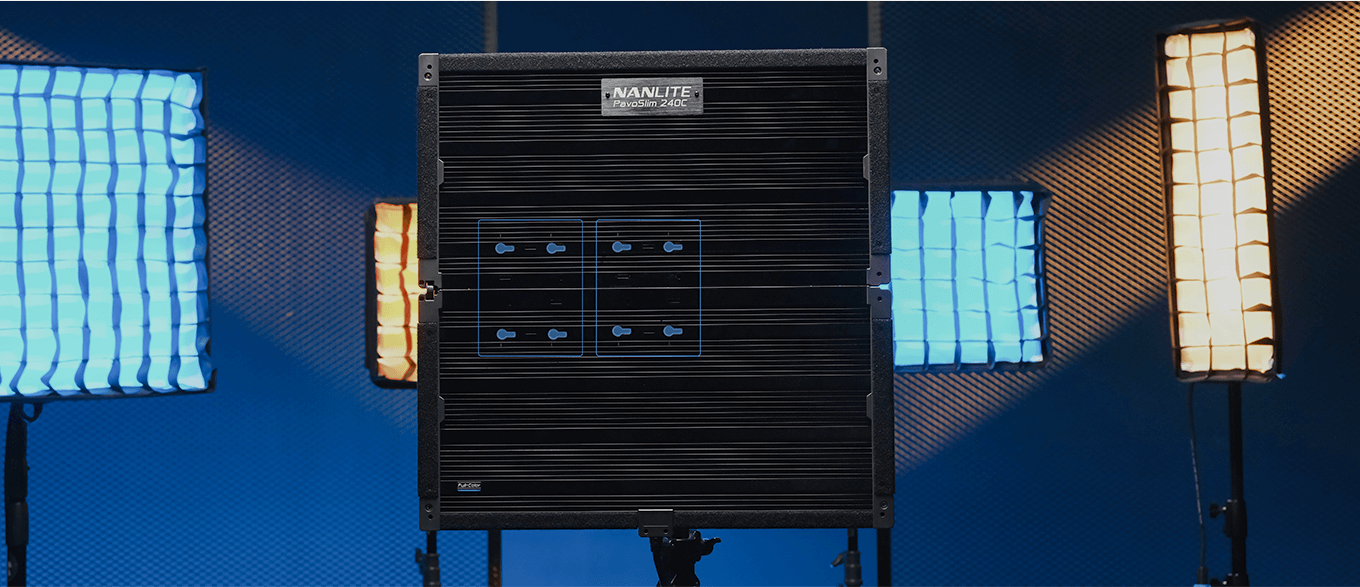

The back of each PavoSlim 240B/240C fixture has multiple 1/4″-20 sockets for flexible mounting

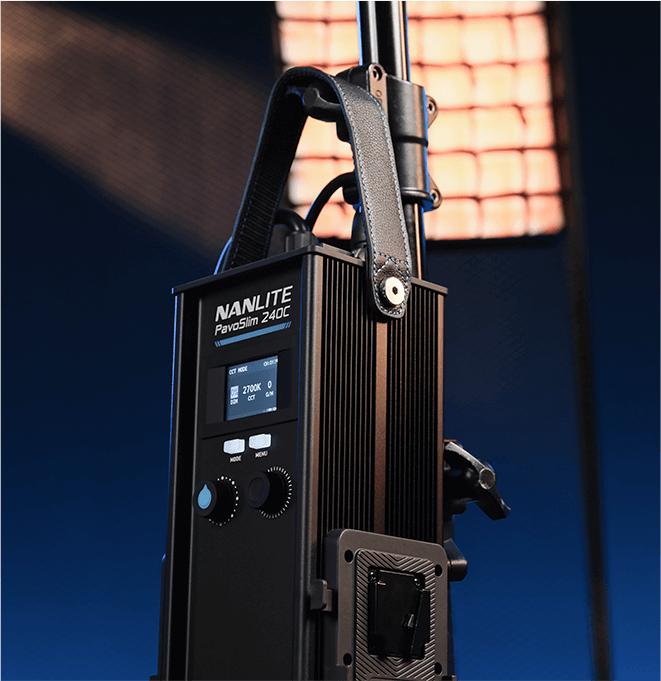

in various situations. The control unit is designed with compatibility for mounting via a quick-release plate,

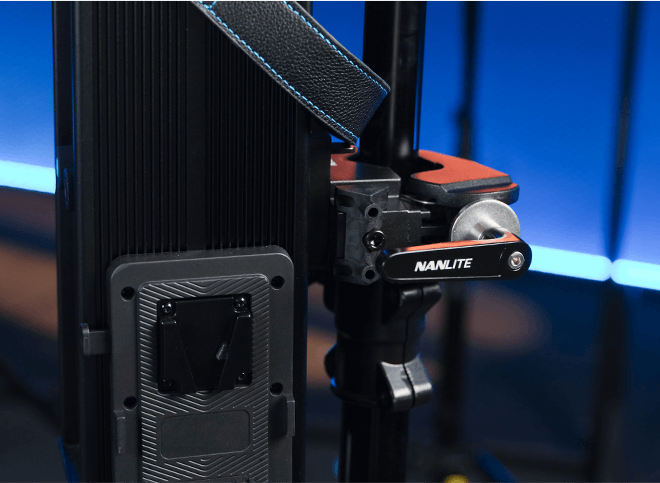

which can be used with the included quick-release clamp for mounting to light stands or truss
(also found on NANLITE Forza II series fixtures). The control unit has a useful hand carry strap
which can also be used to hang it from a light stand.
Universal Holder

Quick Release Clamp

Baby Pin Holder

Strap

* Here take PavoSlim 240C installation for example
Model PavoSlim 240B PavoSlim 240C
Rated Power 260W
Input Voltage/Current AC 100-240V 50/60HZ
DC 48V/5.6A
DC(Battery)14.4-26V
CCT 2700K-6500K 2700K-7500K(G/M ± 150)
CRI Average 95 Average 96
TLCI Average 97
TM-30 Rf Average 95 Average 94
TM-30 Rg Average 102 Average 100
SSI ( 3200K ) 83 83
SSI ( 5600K ) 73 74
Dimming 0-100%
LED Type WW RGBWW
Control On-board, Remote Controller,
DMX/RDM, NANLINK APP
On-board, Remote Controller,
DMX/RDM, LumenRadio CRMX,NANLINK APP
Special Effects CCT Loop, INT Loop, Flash, Pulse,
Storm, TV, Paparazzi, Candle/Fire,
Bad Bulb, Firework,
Explosion and Welding
HUE Loop, CCT Loop, INT Loop, Flash,
Pulse, Storm, Police Car, TV, Paparazzi,
Candle/Fire, Disco, Bad Bulb, Firework,
Explosion and Welding
Product Size Light Fixture:
Unfolded: 608.7 Ă— 602.1 Ă— 28.6mm / 23.96 Ă— 23.70 Ă— 1.13″
Folded: 318.4 Ă— 602.1 Ă— 38.2mm / 12.54 Ă— 23.70 Ă— 1.50″
Control Unit:
152.6 Ă— 111.5 Ă— 283mm / 6.01 Ă— 4.39 Ă— 11.14″
Product Weight Light Fixture: 3.44kg / 7.58lb
Control Unit: 2.65kg / 5.84lb
Light Fixture: 3.65kg / 8.05lb
Control Unit: 2.76kg / 6.08lb
Certifications CE, UKCA, RoHS, PSE, KCC, BIS, FCC-ID, SAA+C-Tick, ETL+cETL, NCC
Illumination (lux / fc)
PavoSlim 240B
Light Only
Distance 0.5M 1M 3M
2700K 51370 lux / 4772 fc 19920 lux / 1851 fc 2668 lux / 248 fc
3200K 53990 lux / 5016 fc 20890 lux / 1941 fc 2784 lux / 259 fc
4300K 59450 lux / 5523 fc 22910 lux / 2128 fc 3053 lux / 284 fc
5600K 59900 lux / 5555 fc 22990 lux / 2136 fc 3060 lux / 284 fc
6500K 60800 lux / 5648 fc 23410 lux / 2175 fc 3108 lux / 289 fc
With Softbox and Lite Diffuser
Distance 0.5M 1M 3M
2700K 29360 lux / 2728 fc 9640 lux / 896 fc 1234 lux / 115 fc
3200K 30770 lux / 2859 fc 10130 lux / 941 fc 1296 lux / 120 fc
4300K 34130 lux / 3171 fc 11190 lux / 1040 fc 1432 lux / 133 fc
5600K 34350 lux / 3191 fc 11220 lux / 1042 fc 1434 lux / 133 fc
6500K 34890 lux / 3241 fc 11410 lux / 1060 fc 1461 lux / 136 fc
With Softbox and Standard Diffuser
Distance 0.5M 1M 3M
2700K 15720 lux / 1460 fc 4458 lux / 414 fc 548 lux / 51 fc
3200K 16470 lux / 1530 fc 4678 lux / 435 fc 577 lux / 54 fc
4300K 18310 lux / 1701 fc 5175 lux / 481 fc 637 lux / 59 fc
5600K 18350 lux / 1705 fc 5197 lux / 483 fc 639 lux / 59 fc
6500K 18680 lux / 1735 fc 5286 lux / 491 fc 650 lux / 60 fc
PavoSlim 240C
Light Only
Distance 0.5M 1M 3M
2700K 52270 lux / 4856 fc 20690 lux / 1922 fc 2868 lux / 296 fc
3200K 57230 lux / 5317 fc 22770 lux / 2115 fc 3130 lux / 291 fc
4300K 62000 lux / 5760 fc 24280 lux / 2256 fc 3343 lux / 311 fc
5600K 63650 lux / 5913 fc 24970 lux / 2320 fc 3441 lux / 320 fc
6500K 63120 lux / 5864 fc 24930 lux / 2316 fc 3432 lux / 319 fc
R 27270 lux / 2533 fc 10390 lux / 965 fc 1364 lux / 127 fc
G 48710 lux / 4525 fc 16770 lux / 1558 fc 2145 lux / 199 fc
B 9170 lux / 852 fc 2060 lux / 191 fc 260 lux / 24 fc
With Softbox and Lite Diffuser
Distance 0.5M 1M 3M
2700K 29750 lux / 2764 fc 9960 lux / 925 fc 1275 lux / 118 fc
3200K 32940 lux / 3060 fc 10900 lux / 1013 fc 1398 lux / 130 fc
4300K 35250 lux / 3275 fc 11640 lux / 1081 fc 1499 lux / 139 fc
5600K 36140 lux / 3357 fc 12010 lux / 1116 fc 1533 lux / 142 fc
6500K 35900 lux / 3335 fc 11870 lux / 1103 fc 1527 lux / 142 fc
R 16260 lux / 1511 fc 5430 lux / 504 fc 696 lux / 65 fc
G 28330 lux / 2632 fc 9080 lux / 844 fc 1154 lux / 107 fc
B 5440 lux / 505 fc 1130 lux / 105 fc 143 lux / 13 fc
With Softbox and Standard Diffuser
Distance 0.5M 1M 3M
2700K 16180 lux / 1503 fc 4575 lux / 425 fc 565 lux / 52 fc
3200K 17910 lux / 1664 fc 5011 lux / 466 fc 619 lux / 58 fc
4300K 19140 lux / 1778 fc 5366 lux / 499 fc 664 lux / 62 fc
5600K 19530 lux / 1814 fc 5517 lux / 513 fc 681 lux / 63 fc
6500K 19350 lux / 1798 fc 5483 lux / 509 fc 675 lux / 63 fc
R 9230 lux / 857 fc 2571 lux / 239 fc 327 lux / 30 fc
G 15470 lux / 1437 fc 4334 lux / 403 fc 535 lux / 50 fc
B 2040 lux / 190 fc 570 lux / 53 fc 70 lux / 7 fc
