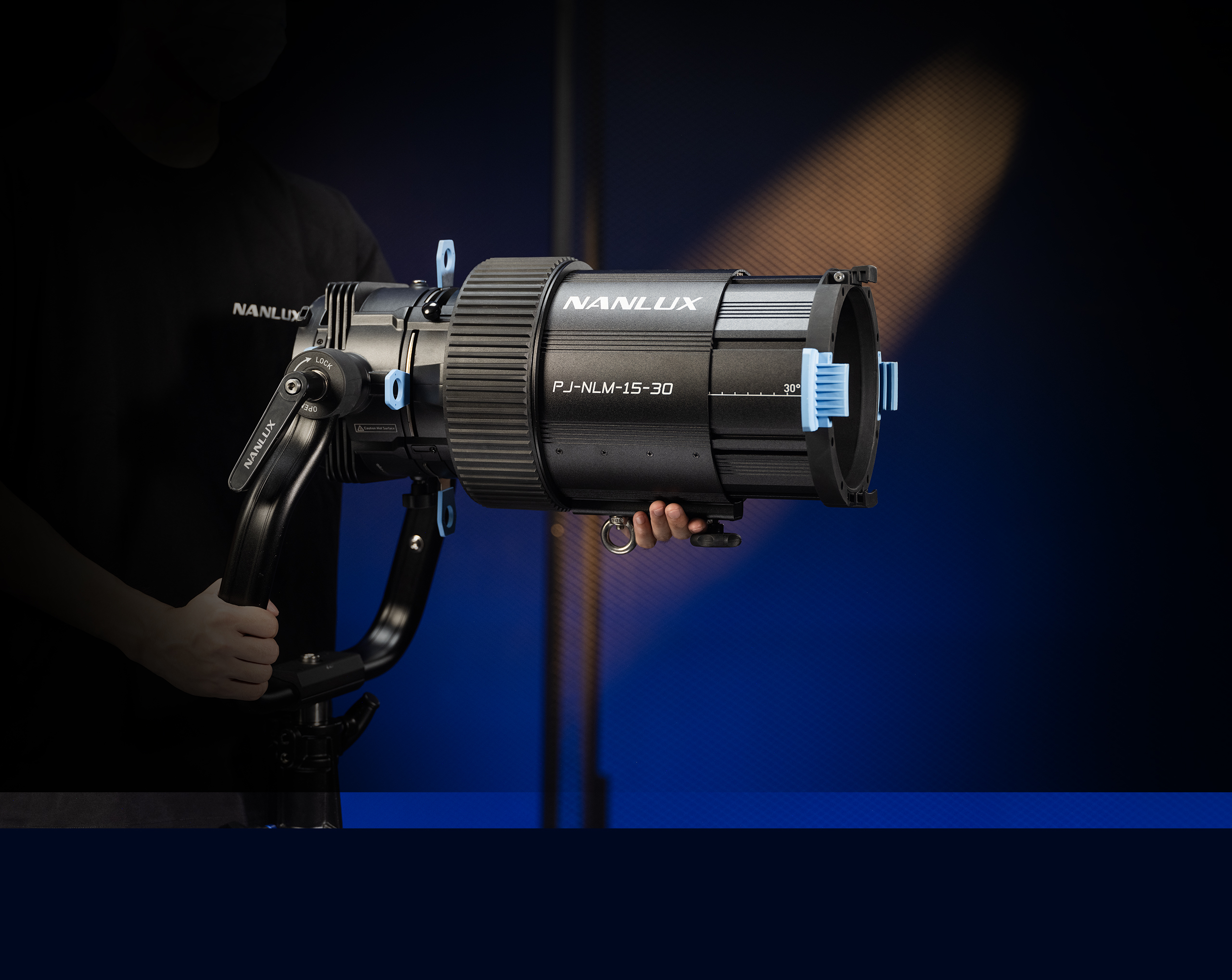

NL Mount Projection Attachment 15-30°

PJ-NLM-15-30

Illuminate · Zoom · Focus

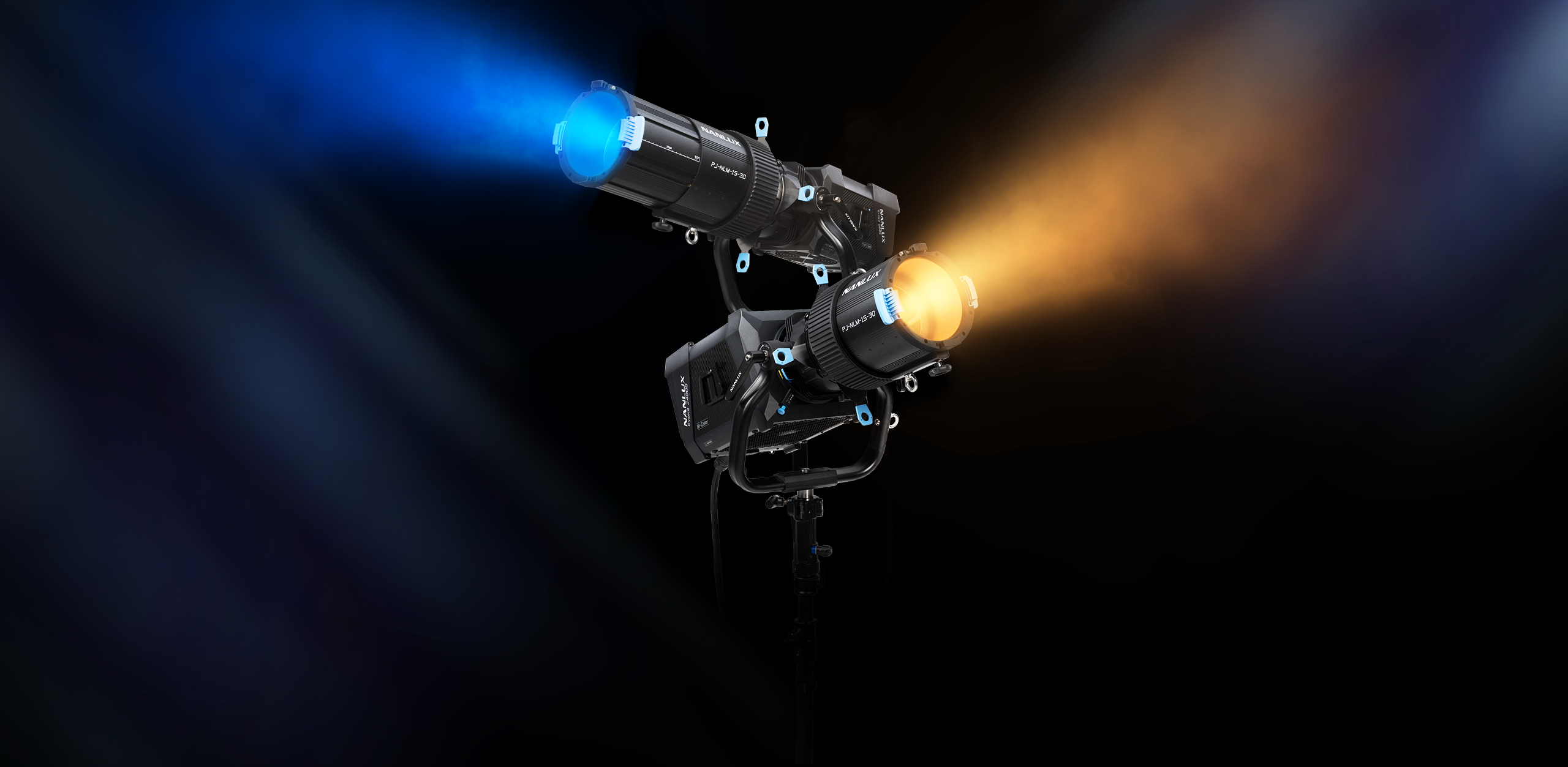

Nanlux introduces the NL Mount Projection Attachment 15-30° for the Evoke series*.
It offers exceptional optical control of zoom, focusing, cutting, and gobo projection with precision optics.
The powerful beam of light it produces is well-controlled, minimizing extraneous light leaks, and easily adds layers,
depth, and accents to backgrounds and images.
The range of lighting effects is further enhanced when it is used with reflectors.

*Compatible with Evoke series NL mount light fixtures, including Evoke 900C/1200/1200B/2400B.

Remarkable Performance

The NL Mount projection attachment 15-30° features an advanced
precision optical lens designed exclusively for the Evoke series light fixtures.
It mounts securely to the fixture via the NL mount and delivers up to
7.5 times* the illuminance compared to the light only, thanks to the
lens’ high-efficiency optical design and excellent light transmission.

Evoke 900C with NL Mount
projection attachment 15-30°

32,720 lux @3m
(15°, 5600K)

≈ 7.5 times
light only

≈ 2.5 times
with reflector

*e.g. with Evoke 900C

All for Convenience

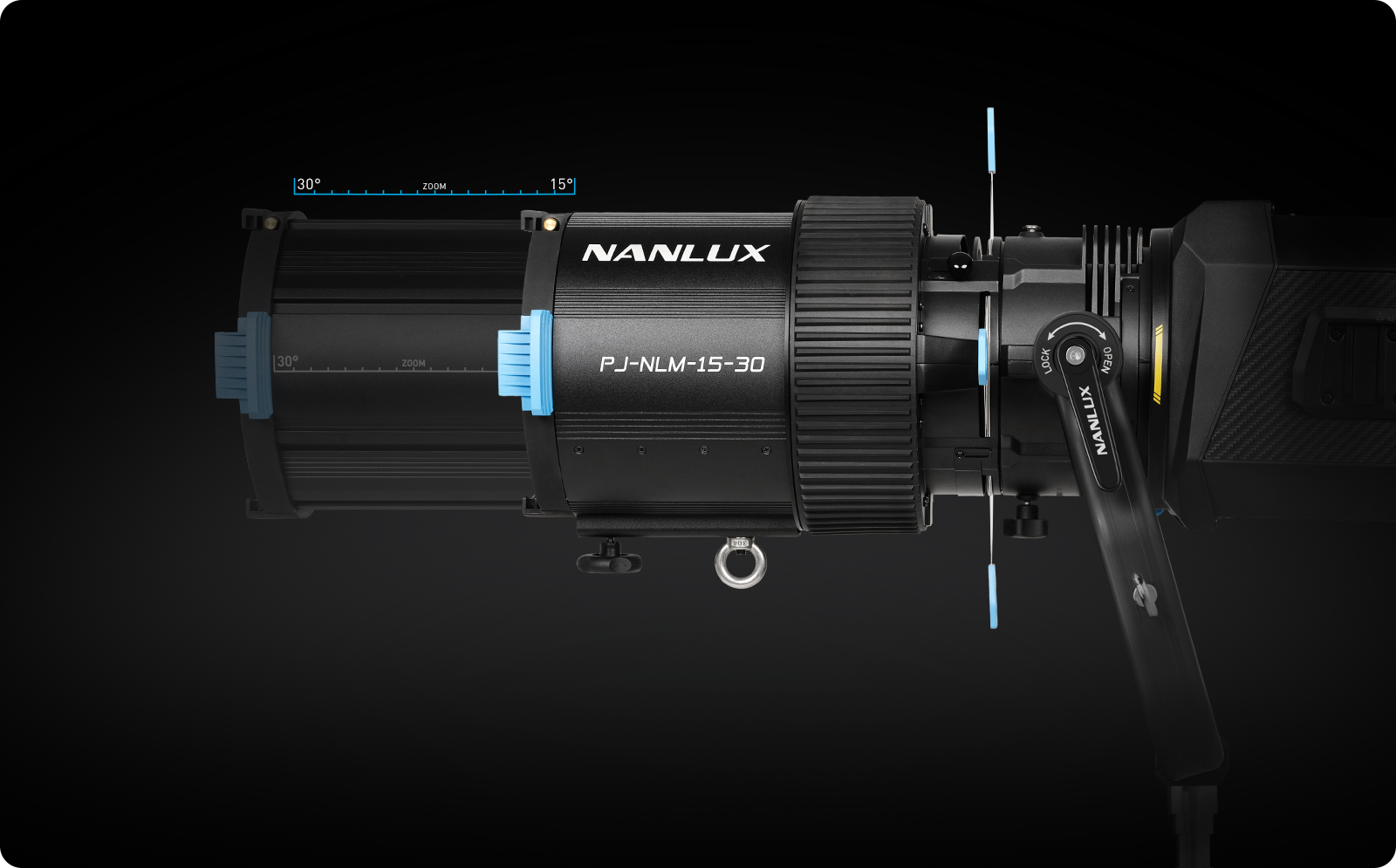

15-30° of Zoom Range

The lens barrel of the NL Mount projection attachment 15-30° extends or retracts allowing for continuous beam angle
adjustments zooming from 15° to 30°. Compared to traditional fixed focal length projection lenses, the zoom system enables
flexible control of the illumination spread without moving the light, making it an ideal solution for various lighting environments.

Zoom Ring

The focus and defocus of the light beam can be adjusted by rotating the zoom ring. Compared to focusing by pushing
the lens barrel, the zoom ring design offers greater precision and a smoother adjustment.

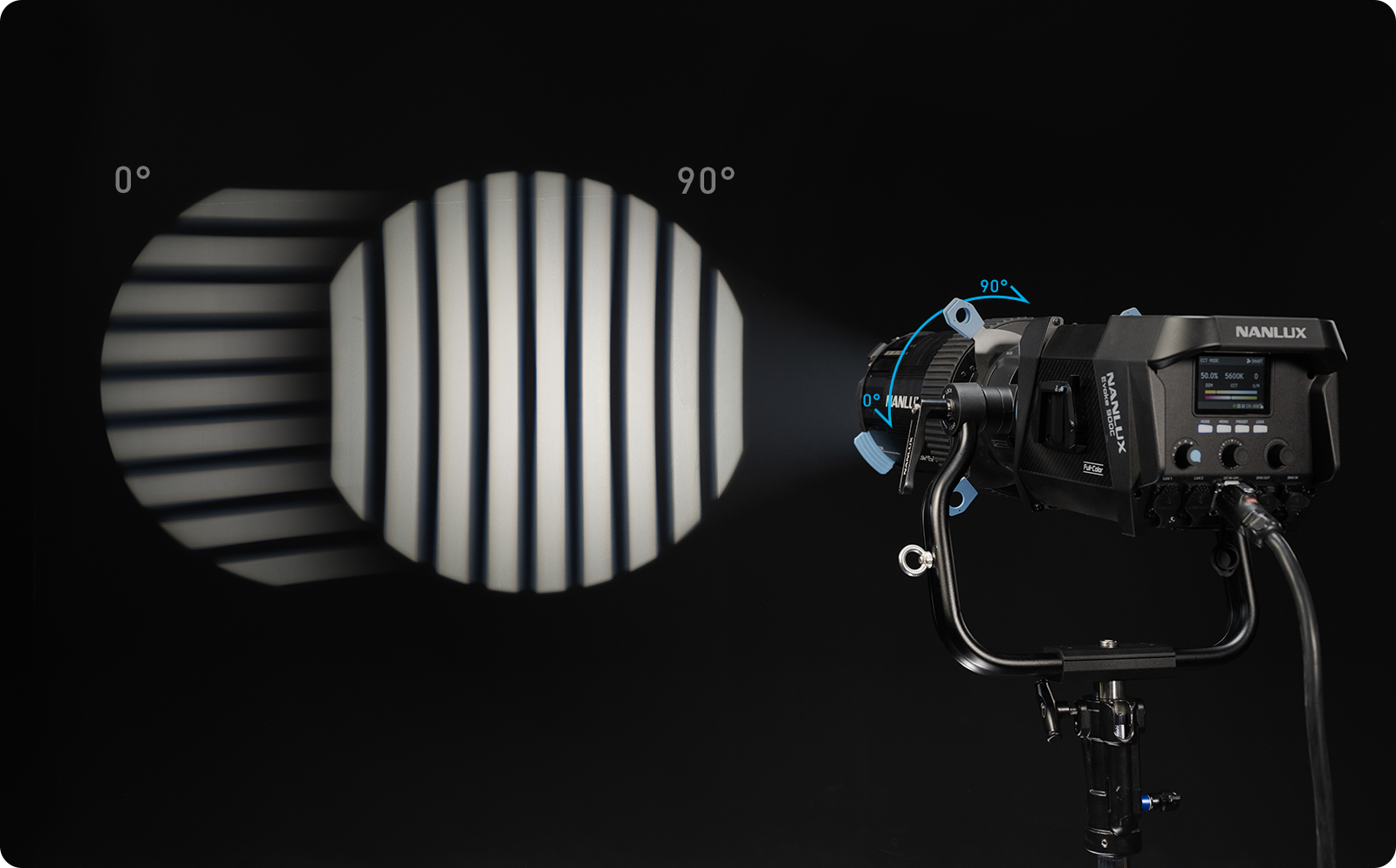

90-degree Rotatable Lens Barrel

The lens barrel can be rotated to adjust the angle of the beam, greatly enhancing flexibility
without the need to move the shutter or gobo.

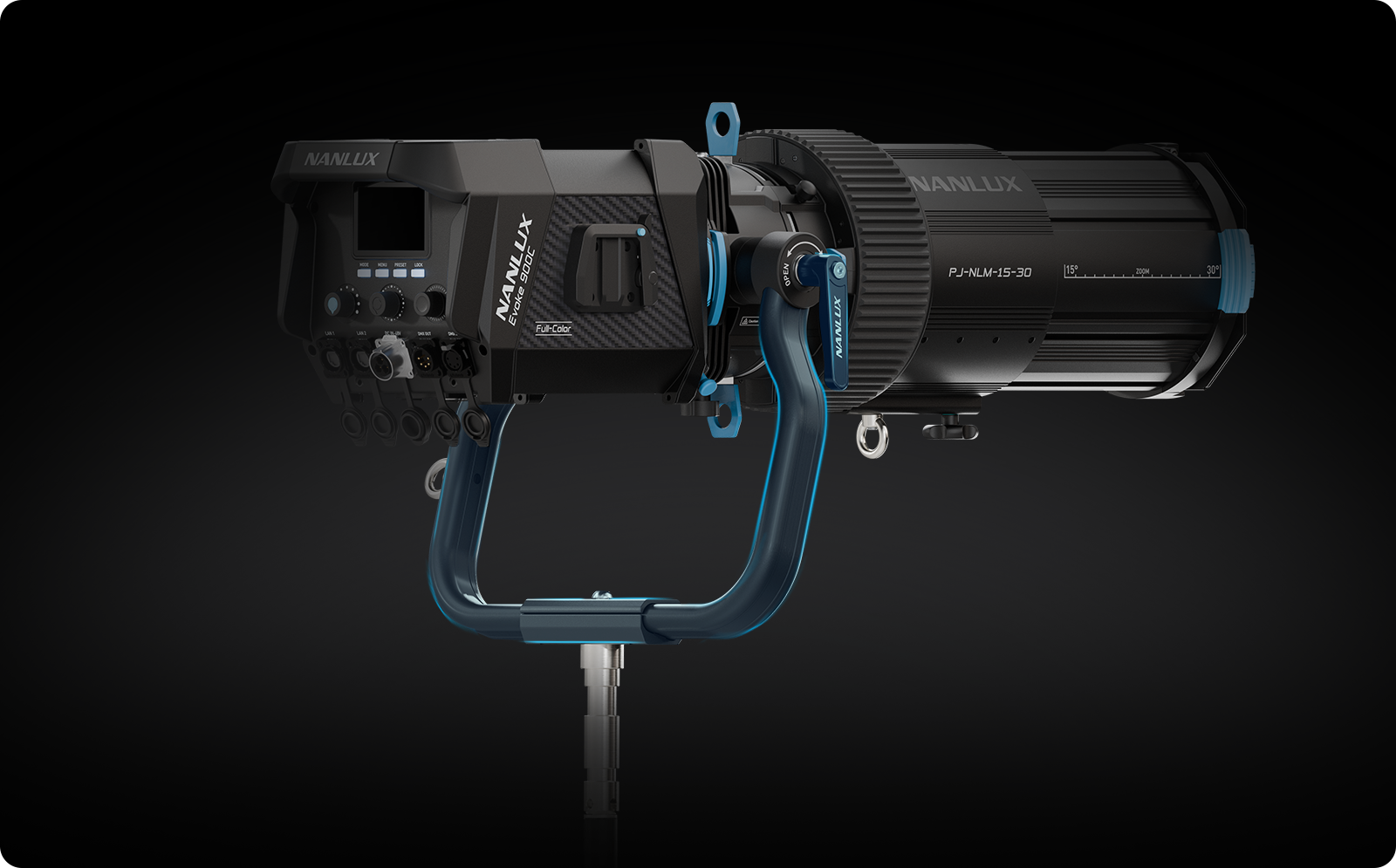

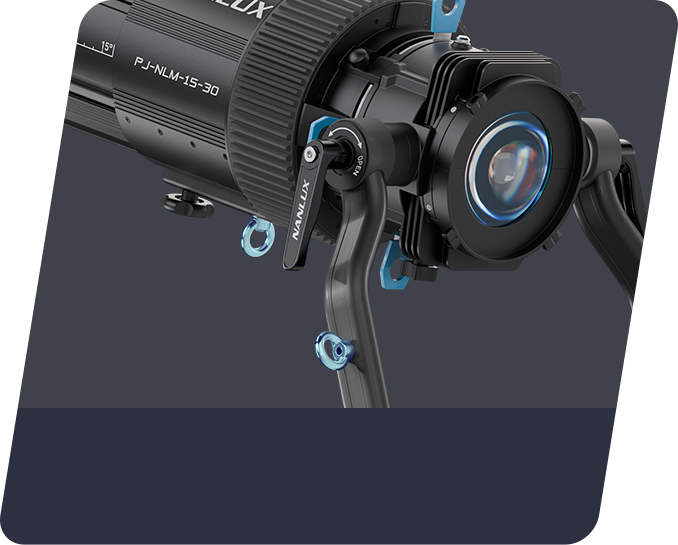

Fast Setup and Stable Balance

The integrated yoke, together with the adjustable handles on both sides for secure locking, allows users to set up the
projection attachment quickly and steadily. Its design ensures proper weight distribution and balance when
mounted with the fixture, avoiding any shift in the projection angle due to gravity.

Third-party Lens Compatibility

The holder of the projection attachment is compatible with third-party barrels and lenses,
not only enriching the selection of lenses but also potentially bringing new life to existing lenses already owned.

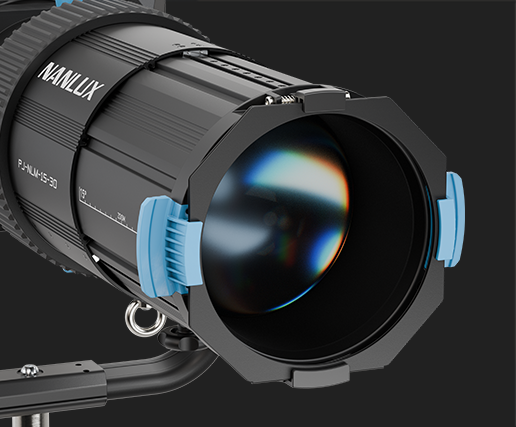

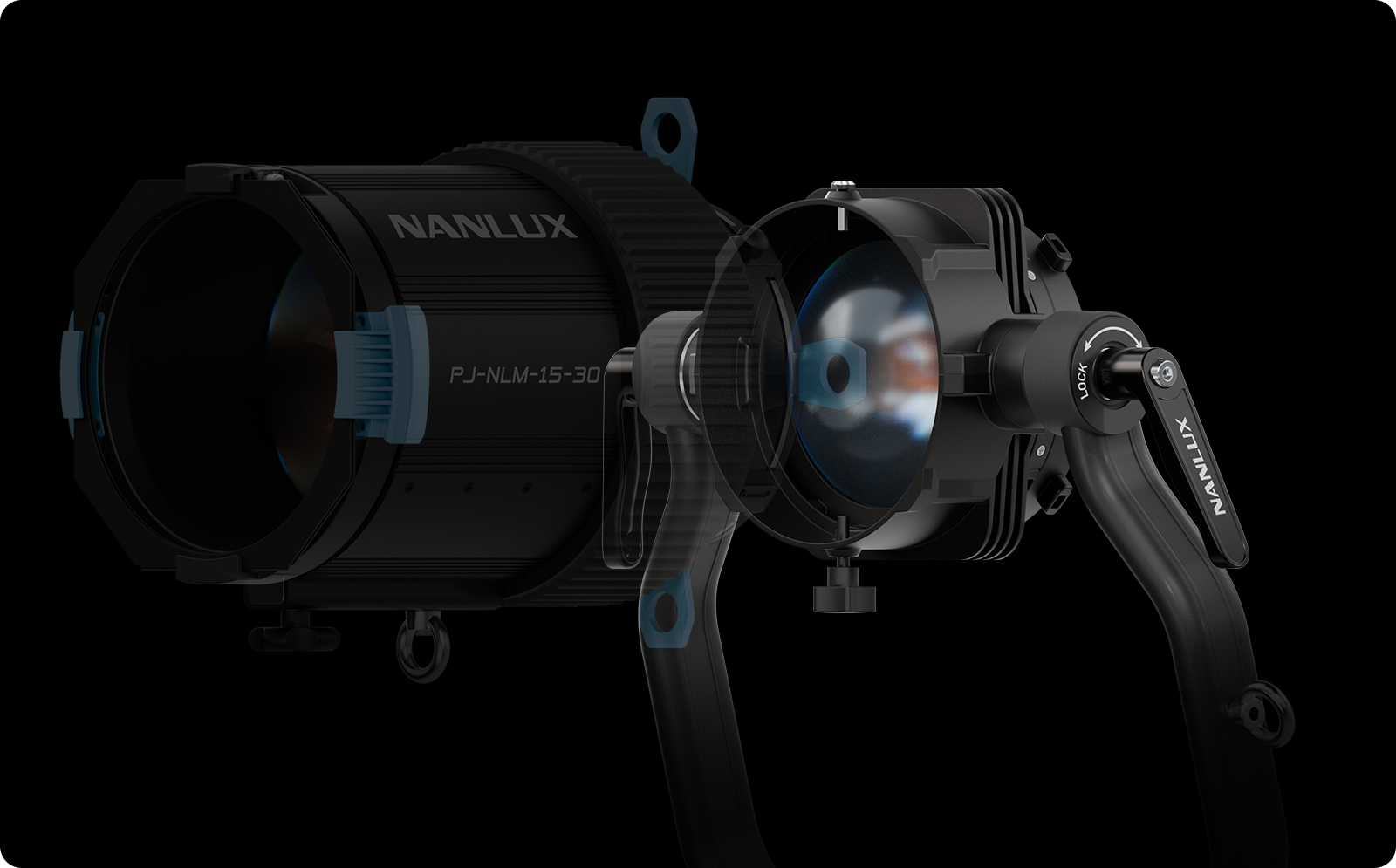

Precision Aspherical Optical Design

Nanlux has designed a precise optical system for the NL Mount Projection Attachment 15-30°,
offering exceptional performance in controlling light loss, chromatic aberration, and distortion,
while achieving excellent beam uniformity to meet the high demands for light quality in productions.

78 %
uniformity

0.88 %
distortion

*measured at 3m with 15°

Edge-blackening
Reduce edge diffusion for better
edge sharpness

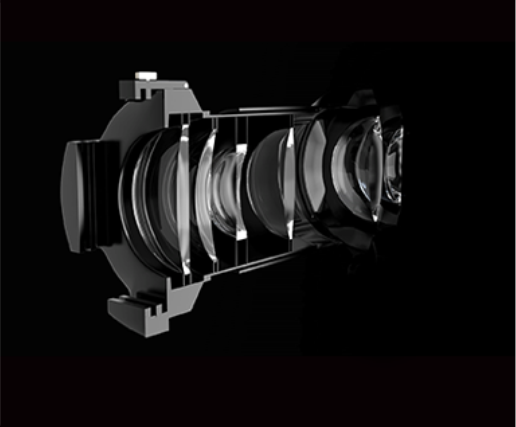

Aspherical Lens
Enhance uniformity, minimize
aberration, and reduce distortion

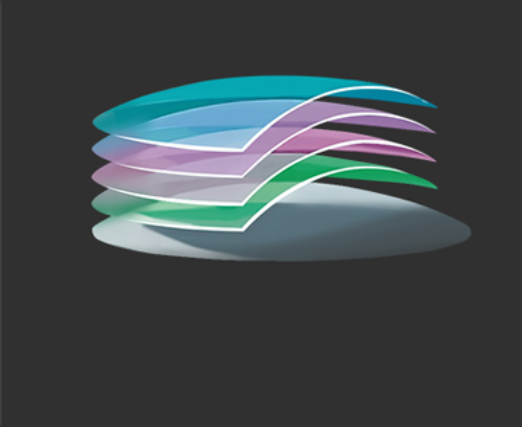

Optical Anti-reflective Coating
Improve light transmission and
color accuracy

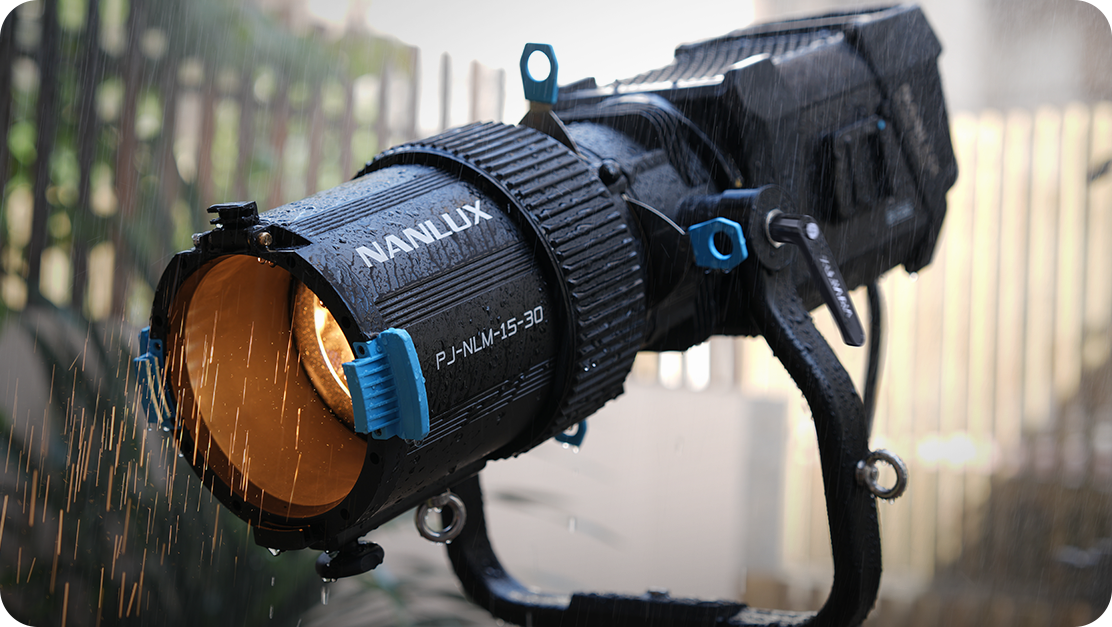

Lightweight and Reliable

Designed to be both rugged and portable, the body of the NL Mount Projection Attachment 15-30° is constructed
of aluminum alloy and highly durable nylon.
This makes it both lightweight and strong, while keeping the weight under 12kg .

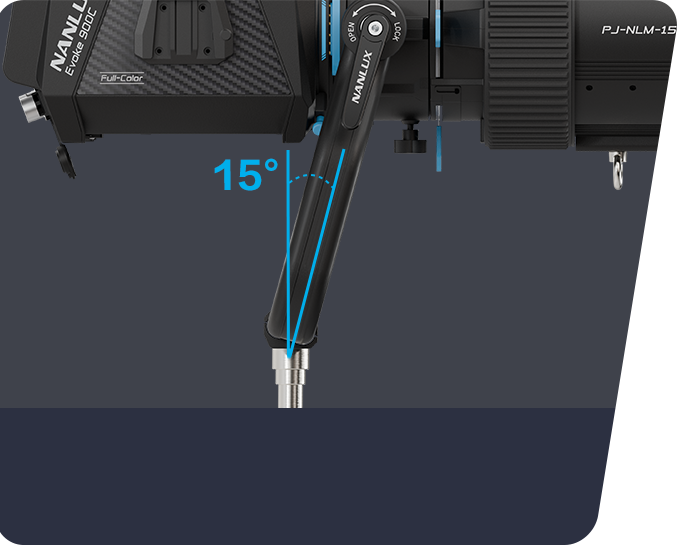

A 15° offset design of the yoke allows
for a larger downward angle on
a light stand while maintaining stability.

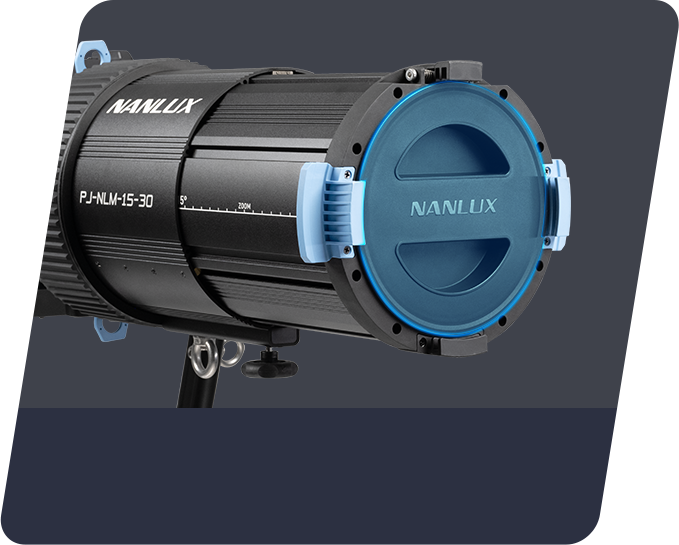

It comes with protective covers for both
ends of to prevent dust and scratches
from affecting performance.

It has an eyebolt on the barrel and
yoke for attaching a safety cable.

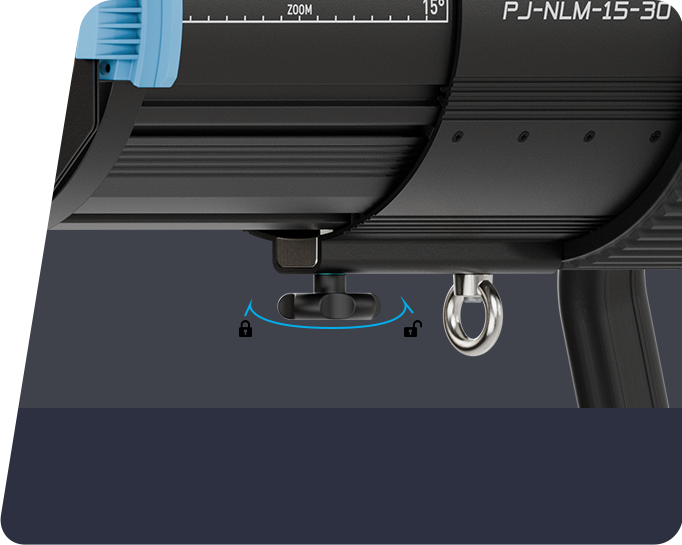

There is a fastening knob to limit
movement and prevent swaying during
downward projection.

More Light Shaping Possibilities

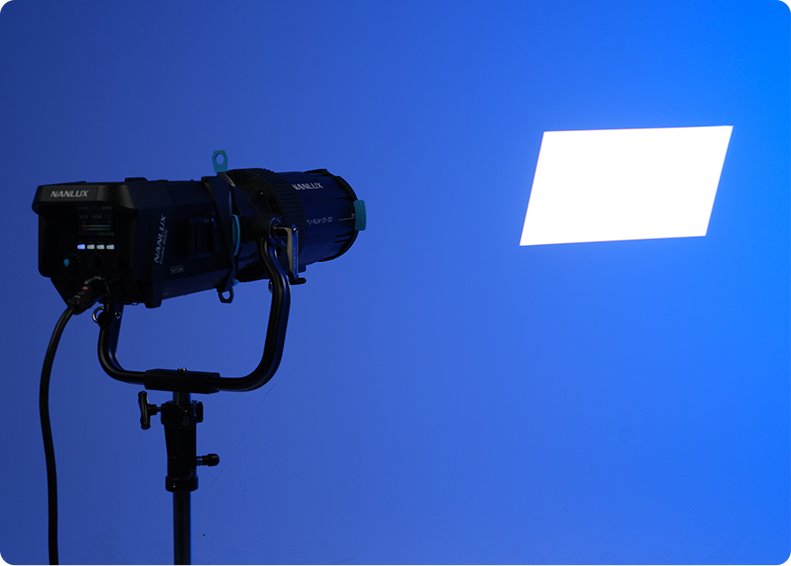

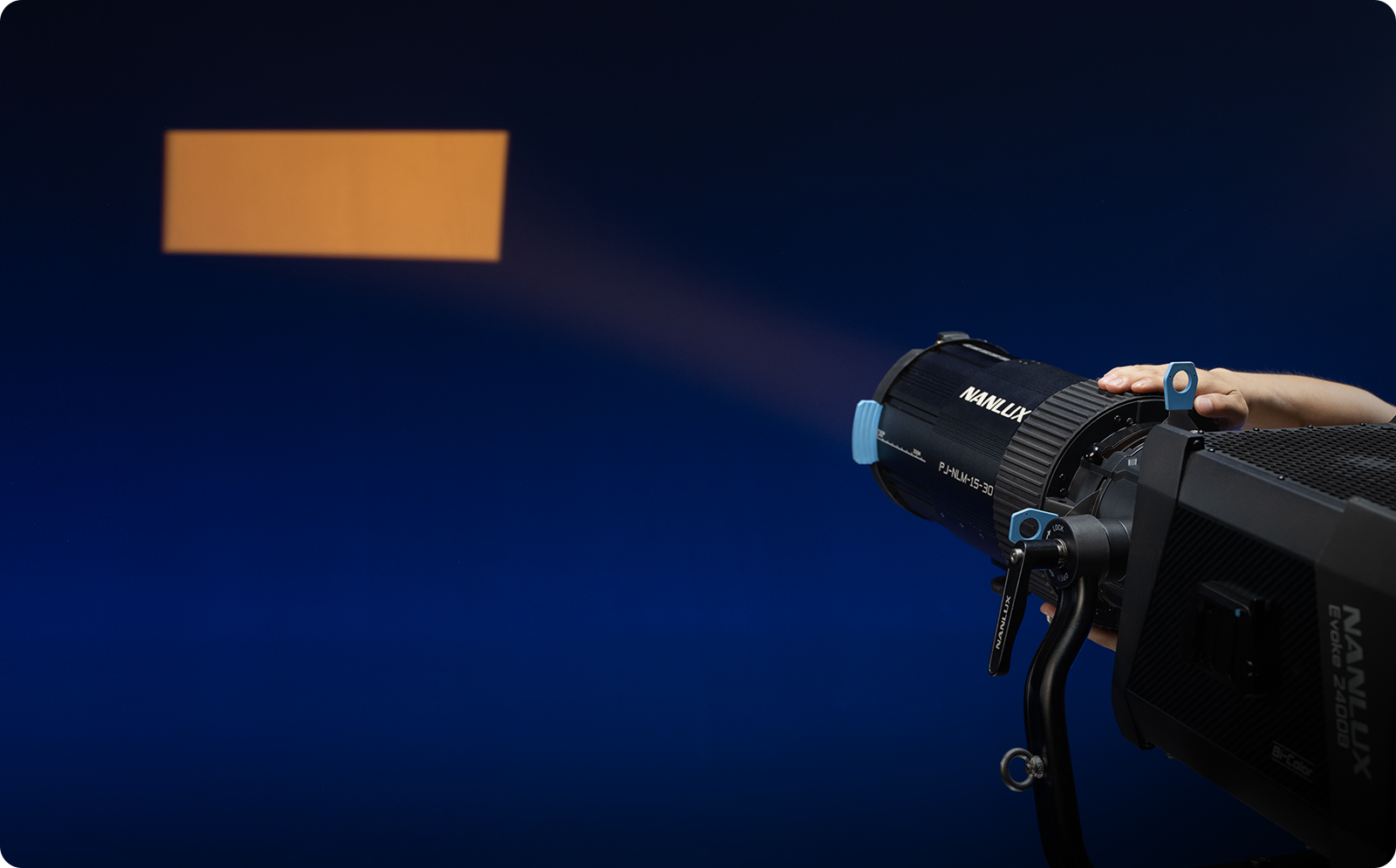

Cutting Shutters

Each shutter can be freely adjusted independently for
precise control.

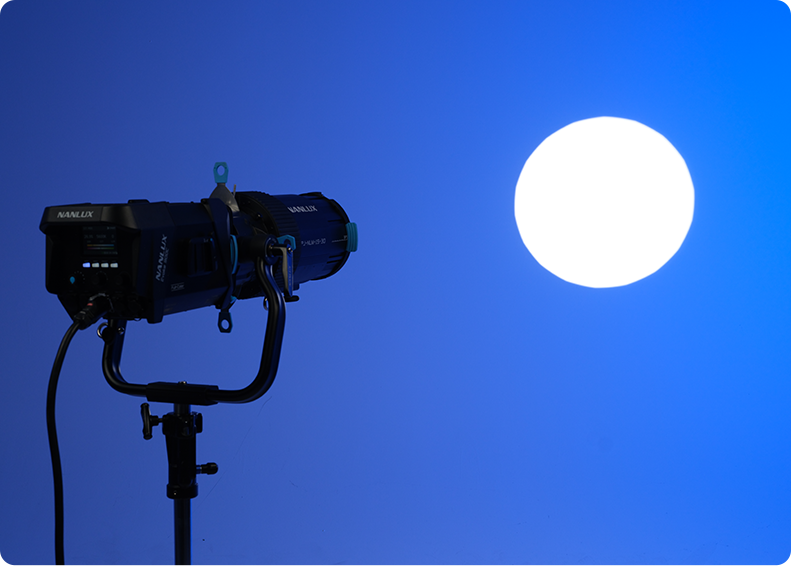

Iris Diaphragm

The 18-blade iris diaphragm creates a beautifully rounded
beam shape. Users can slide the built-in rod to adjust the
beam size and tighten it to lock.

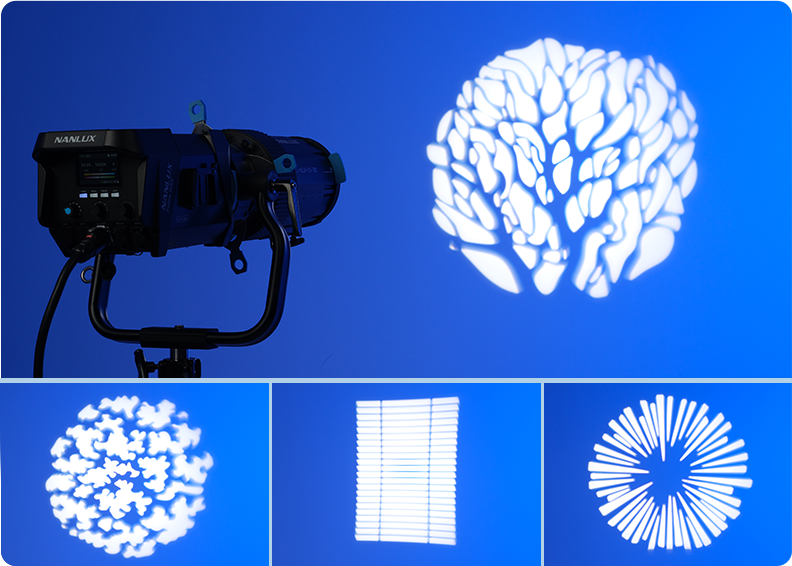

Gobo

Four gobos are included, which can be installed in the gobo
holder to project various patterns. Designed in a standard
A size, this projection attachment is compatible with a wide
variety of pre-made gobos available on the market.

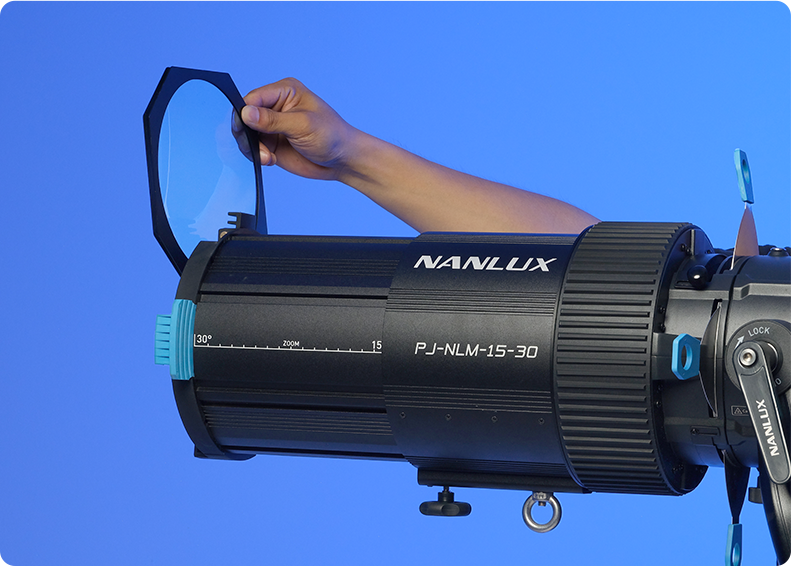

Gel Frame

The projection attachment is designed with a gel frame for
inserting gels, allowing daylight or bicolor lights to output
colors.

High Heat Resistance + Optimized Heat Dissipation

The NL Mount Projection Attachment 15-30° is made of
heat-resistant materials, providing higher thermal stability,
and the use of aluminum alloy further enhances the heat
resistance of the entire unit. This design allows it to
withstand the high temperatures generated during extended
use with high-power fixtures like the Evoke 2400B, while also
ensuring stable optical performance.

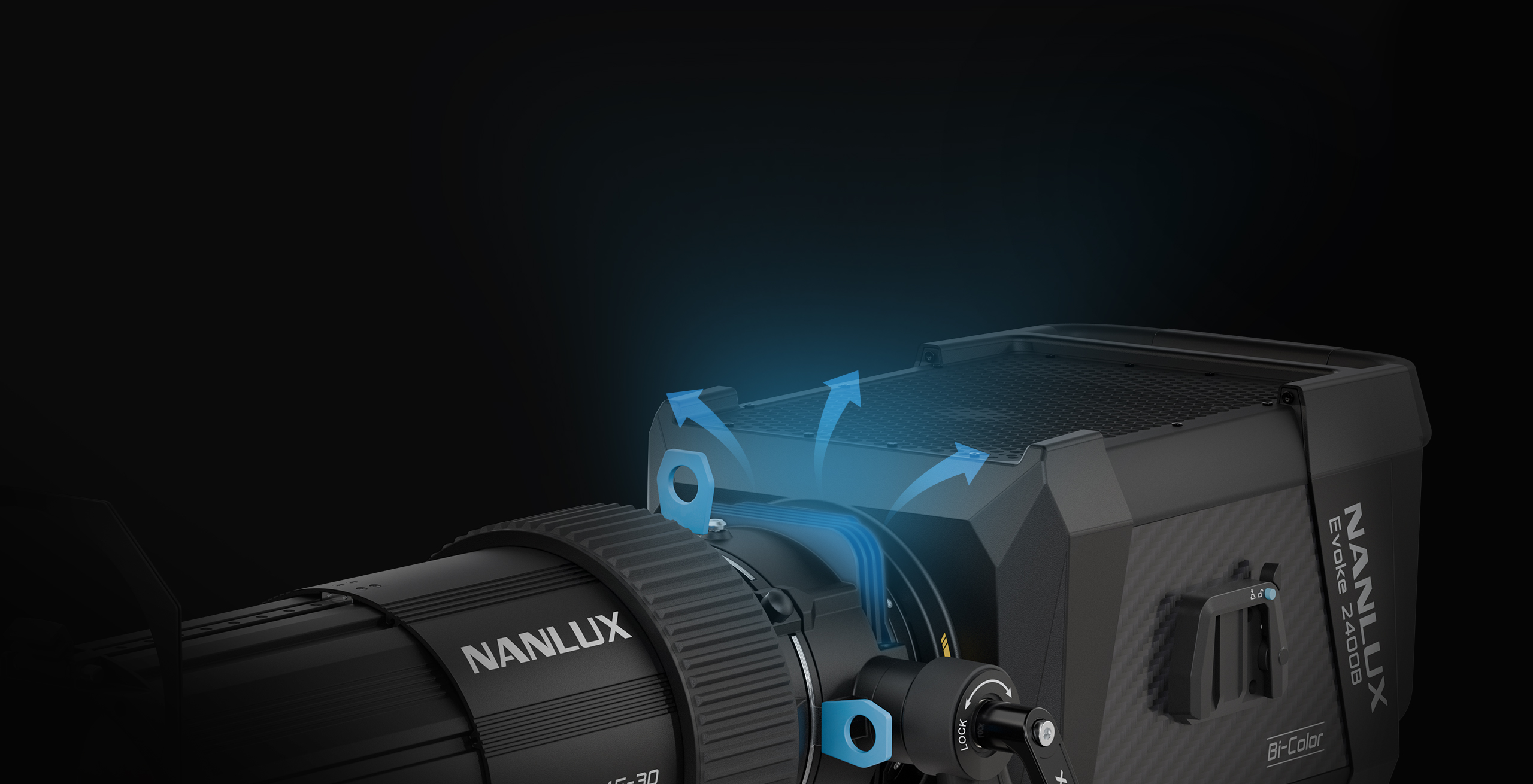

Nanlux has cleverly designed the projection attachment to stay
cool passively. The aluminum alloy body ensures optimal heat
conduction, while the external heat sink fins at the holder
improve cooling efficiency. The passive cooling solution also
offers better performance for audio recording on set.

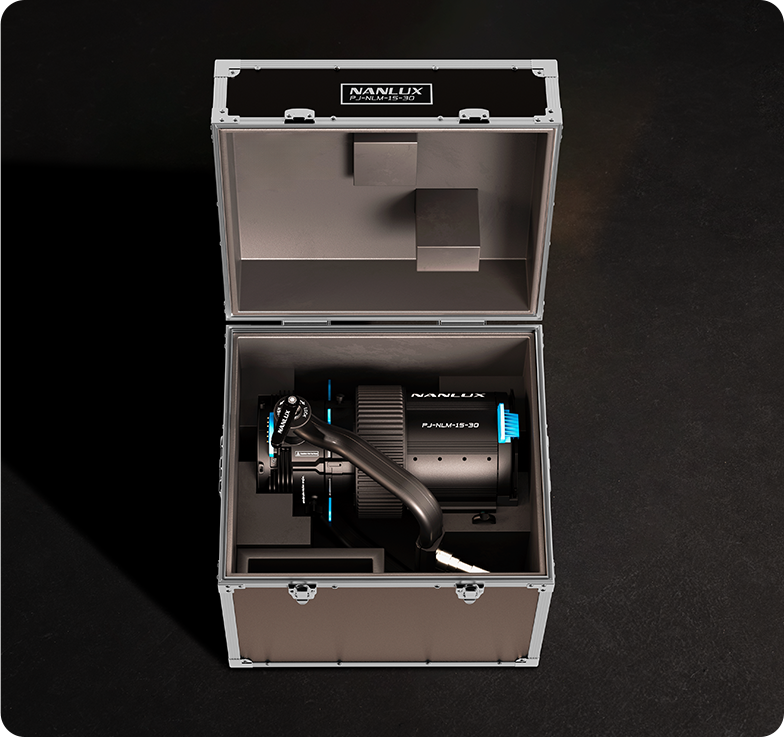

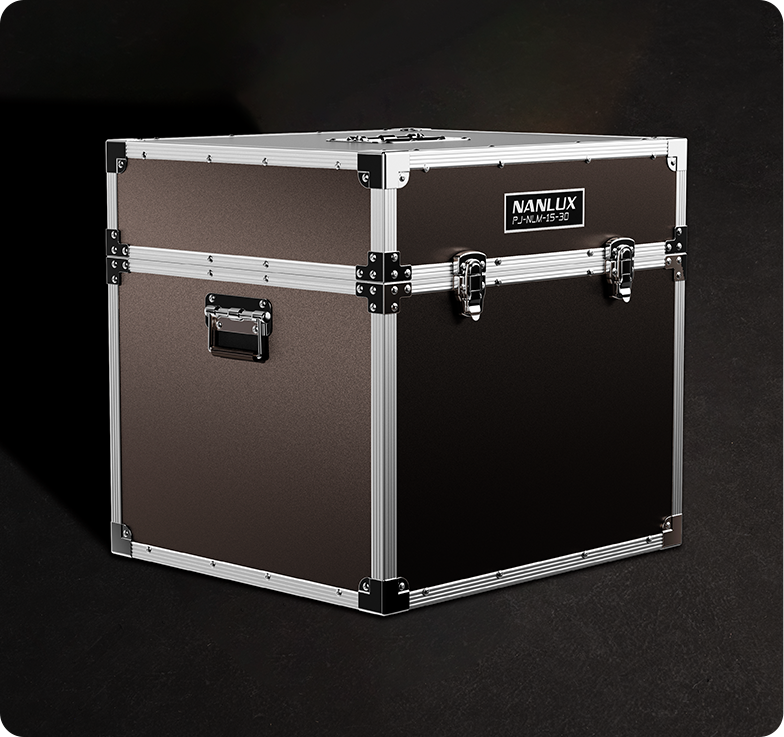

Rugged Flight Case

The standard flight case is designed for frequent transportation. It features an aluminum alloy structure with
impact-resistant corner bumpers for durability and internal linings to ensure the safe transport of the whole kit.

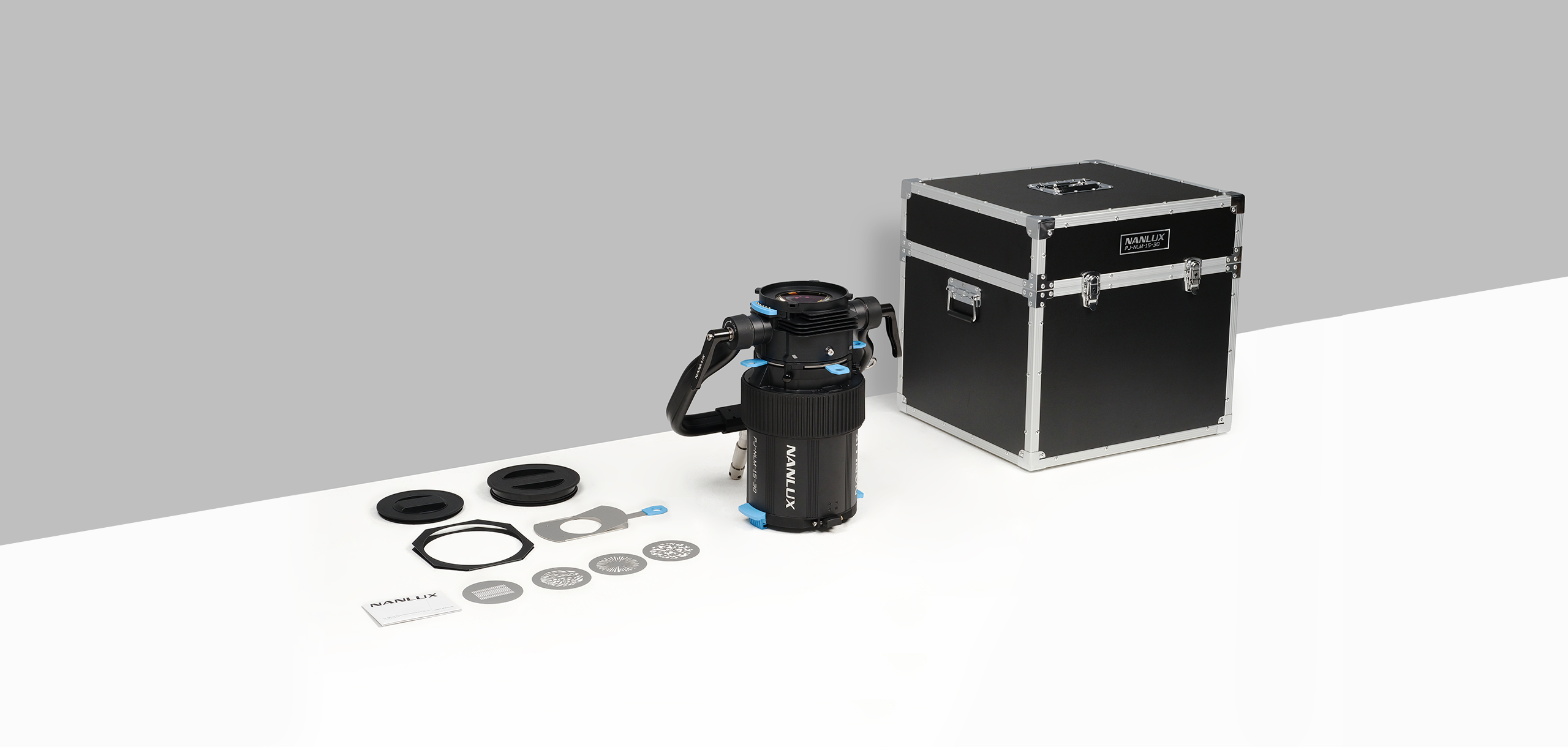

Includes

NL Mount Projection Attachment 15-30° × 1
Plastic Protective Cover (front cover) × 1
Plastic Protective Cover (back cover) × 1
A Size GOBO × 4
GOBO Holder × 1
Gel Frame × 1
User Manual × 1
Flight Case × 1

NL Mount Projection Attachment 15-30°

Technical Data

Model

PJ-NLM-15-30

Beam Angle

15-30°

Compatible Mount

NL Mount

Compatible Product

Evoke 900C / 1200 / 1200B / 2400B

Product Size

NL Mount Projection Attachment 15-30°:
extented at 15°: 629.5 × 392.5 × 514.7mm / 24.78 × 15.45 × 20.26″
retracted at 30°: 451.5 × 392.5 × 514.7mm / 17.78 × 15.45 × 20.26″
Plastic Protective Cover (front cover): φ174.9 × 27mm / φ6.89 × 1.06″
Plastic Protective Cover (back cover): φ158.9 × 17mm/ φ6.26 × 0.67″
A Size GOBO: φ100 × 0.4mm / φ3.94 × 0.02″
GOBO Holder: 257.7 × 102 × 24.4mm / 10.15 × 4.02 × 0.96″
Gel Frame: 188 × 188 × 35mm / 7.40 × 7.40 × 1.38″
Flight Case: 555 × 445 × 455mm / 21.85 × 17.52 × 17.91″

Product Weight

NL Mount Projection Attachment 15-30°: 11.85kg / 26.12lb
Plastic Protective Cover (front cover): 0.148kg / 0.33lb
Plastic Protective Cover (back cover): 0.07kg / 0.15lb
A Size GOBO: 0.018kg × 4 / 0.04lb × 4
GOBO Holder: 0.11kg / 0.24lb
Gel Frame: 0.12kg / 0.26lb
Flight Case: 12.55kg / 27.67lb

Includes

PJ-NLM-15-30 NL Mount Projection Attachment 15-30° × 1
Plastic Protective Cover (front cover) × 1
Plastic Protective Cover (back cover) × 1
A Size GOBO × 4
GOBO Holder × 1
Gel Frame × 1
Flight Case × 1
User Manual × 1

Model

PJ-NLM-AI

Compatible Product

NL Mount Projection Attachment 15-30°

Product Size

177 × 149.7 × 8.5mm / 6.97 × 5.89 × 0.33″

Product Weight

0.15kg / 0.33lb

Includes

PJ-NLM-AI Adjustable lris Diaphragm × 1

Illumination ( lux / fc )

Evoke 900C + PJ-NLM-15-30（15°）
Distance	3M	5M	7M	9M
3200K	32710 lux / 3039 fc	10310 lux / 958 fc	4978 lux / 462 fc	2913 lux / 271 fc
5600K	32720 lux / 3040 fc	10260 lux / 953 fc	4952 lux / 460 fc	2922 lux / 271 fc

Evoke 900C + PJ-NLM-15-30（30°）
Distance	3M	5M	7M	9M
3200K	18920 lux / 1758 fc	6577 lux / 611 fc	3321 lux / 309 fc	2027 lux / 188 fc
5600K	19090 lux / 1773 fc	6630 lux / 616 fc	3335 lux / 310 fc	2042 lux / 190 fc

Evoke 1200B + PJ-NLM-15-30（15°）
Distance	3M	5M	7M	9M
3200K	29490 lux / 2740 fc	9180 lux / 853 fc	4397 lux / 408 fc	2628 lux / 244 fc
5600K	35010 lux / 3252 fc	10980 lux / 1020 fc	5231 lux / 486 fc	3113 lux / 289 fc

Evoke 1200B + PJ-NLM-15-30（30°）
Distance	3M	5M	7M	9M
3200K	17360 lux / 1613 fc	5840 lux / 543 fc	3004 lux / 279 fc	1866 lux / 173 fc
5600K	20630 lux / 1917 fc	6993 lux / 650 fc	3561 lux / 331 fc	2225 lux / 207 fc

Evoke 2400B + PJ-NLM-15-30（15°）
Distance	3M	5M	7M	9M
3200K	34860 lux / 3238 fc	10800 lux / 1003 fc	5159 lux / 479 fc	3057 lux / 284 fc
5600K	39920 lux / 3709 fc	12400 lux / 1152 fc	5997 lux / 557 fc	3501 lux / 325 fc

Evoke 2400B + PJ-NLM-15-30（30°）
Distance	3M	5M	7M	9M
3200K	20230 lux / 1879 fc	6836 lux / 635 fc	3501 lux / 325 fc	2134 lux / 198 fc
5600K	23320 lux / 2166 fc	7988 lux / 742 fc	4036 lux / 375 fc	2461 lux / 229 fc
